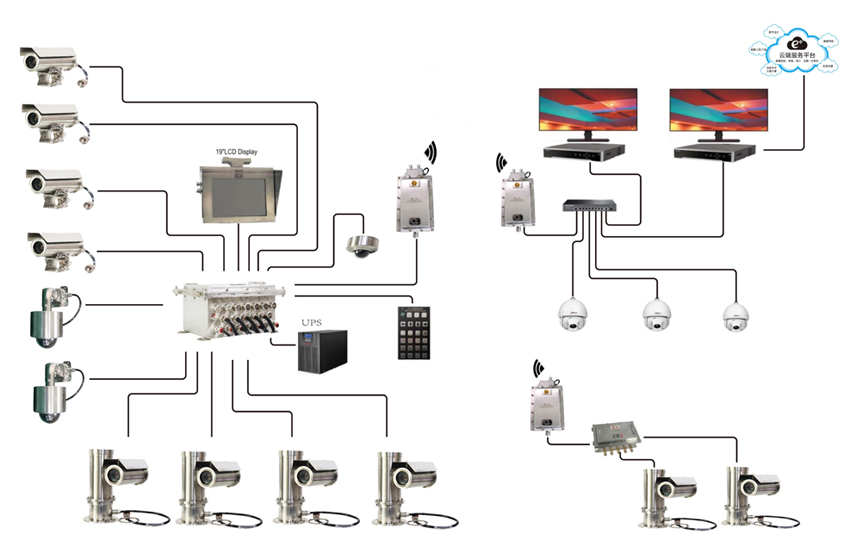

This system is used for real-time monitoring of various functional areas of drilling equipment. The driller can switch freely through the explosion-proof control keyboard on the seat, including the winch drum, vibrating screen, mud reflux port, mud tank area, drilling pump area, pipe rack area, power catwalk, second floor platform, high-level elevator flipping, iron driller, drilling table, base wellhead, second floor platform manipulator, etc. The screen displays the XY rotation of the pan tilt camera, optical zoom, zoom, split screen switching of the display screen, and system menu settings.

Real time remote transmission of monitoring equipment images to the team leader's office, supervision office, and oilfield headquarters can be achieved through on-site wireless network and 4G, enabling real-time observation and monitoring of drilling equipment.
